Plantflec

Plantflec, a straight tube LED lamp for plant growth, has a spectrum specifically suitable for plant growth!
Available in pink and yellow colors!

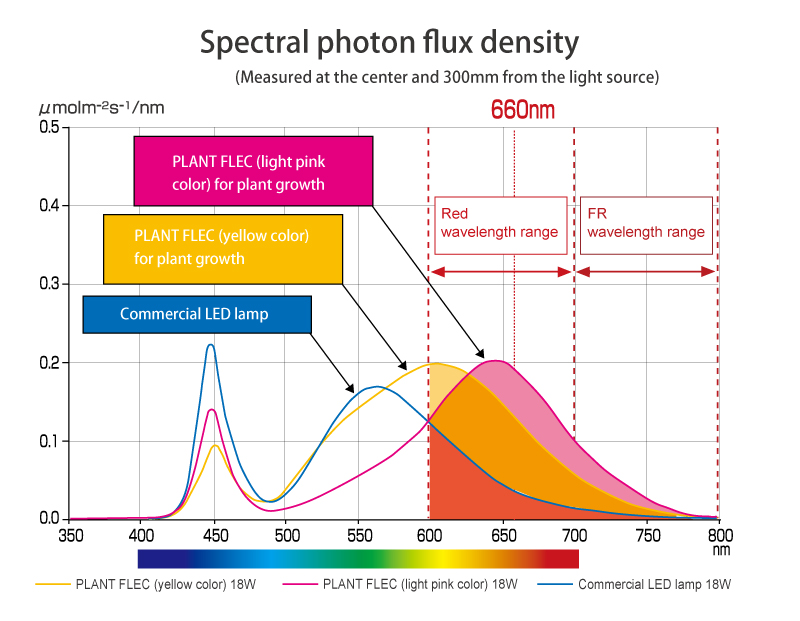

Dedicated light source: Spectral distribution specialized for plant growth.
Energy saving: Power consumption is 50% or less compared to fluorescent lamps.
Low cost: Low initial and running costs.
Low heat generation: The light-emitting surface emits almost no heat, reducing the risk of heat death of plants.
Expansion of growing quantity: Multiple stages are possible by approaching each other.
Emission color: Pink for plant factories and yellow for normal and research use.
Installation: Existing fluorescent light fixtures can be used. Electrical work is required.
Ideal for replacing lamps in existing culture racks and artificial weathering equipment.

Pink color

Model	PF10-S4WT8-P1^＊	PF15-S5WT8-P1^＊	PF20-S9WT8-P1^＊	PF40-S18WT8-P1^＊
Lamp type	10W	15W	20W	40W

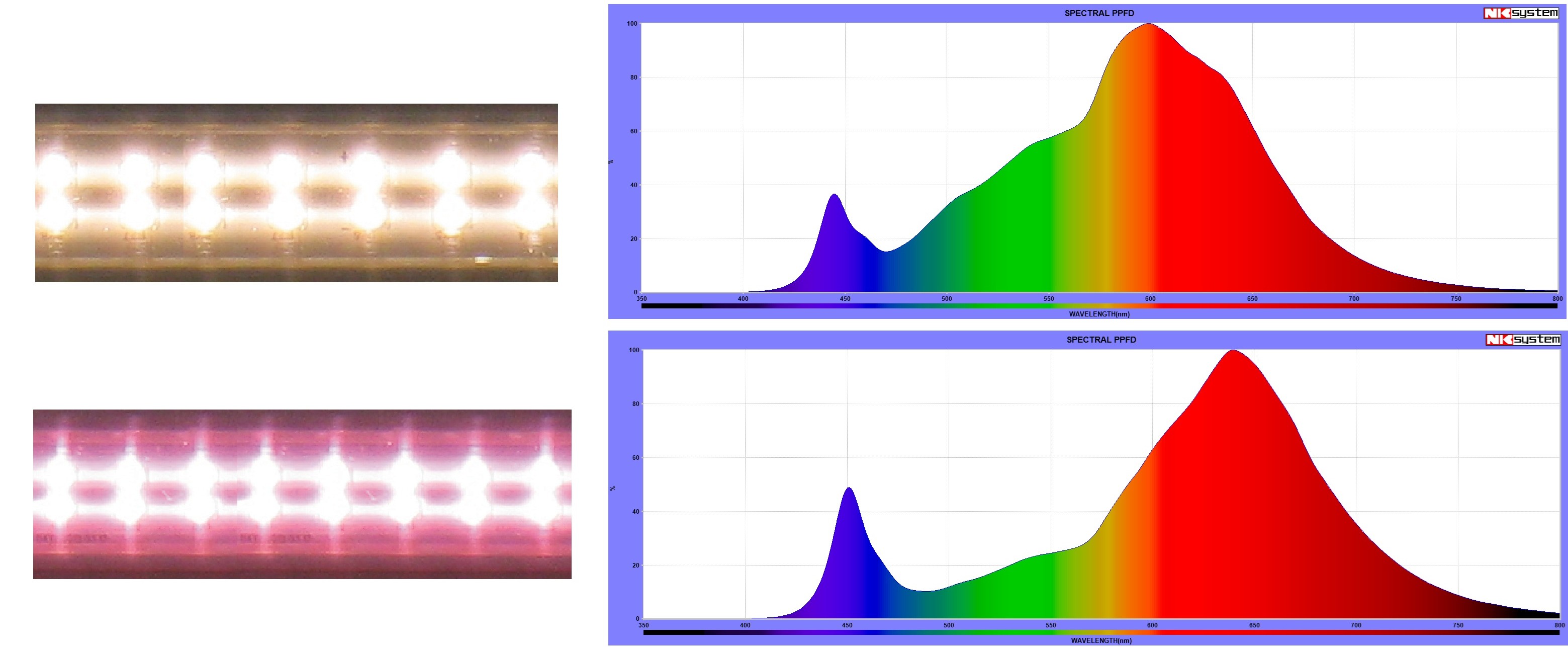

Emission color

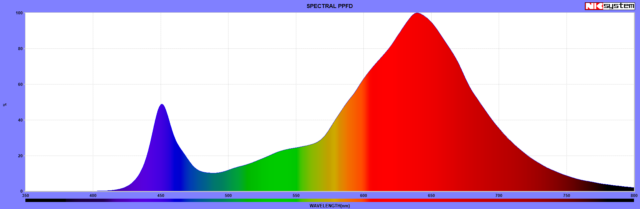

Spectral distribution
Lamp surface	Transparent plastic cover
Number of LED chips	25 pieces × 2 rows 50 pieces	35 pieces × 2 rows 70 pieces	65 pieces × 2 rows 130 pieces	144 pieces × 2 rows 288 pieces
LED illuminating angle (°)	120
Tube diameter (minor axis × major axis [mm])	30.3 × 34.3
Length (mm)	330	436	580	1,198
Weight (g)	120	160	210	392
Tube base	G13
Protection level	IP20
Input current (A) max at 100V	0.06	0.09	0.09	0.18
Power consumption (W) max at 100V	4	5	9	18
Total luminous flux (lm)	160	233	750	1,000
Color temperature (K)	2,100 ± 100
Color rendering index (Ra)	80
Environmental temperature (℃)	-20 to 40		-10~40
Life time (h)	Approximately 30,000
Power source	AC 100 to 240 V 50/60Hz

Yellow color

Model	PF10-S4WT8-D1^＊	PF15-S5WT8-D1^＊	PF20-S9WT8-D1^＊	PF40-S18WT8-D1^＊
Lamp type	10W	15W	20W	40W
Emission color

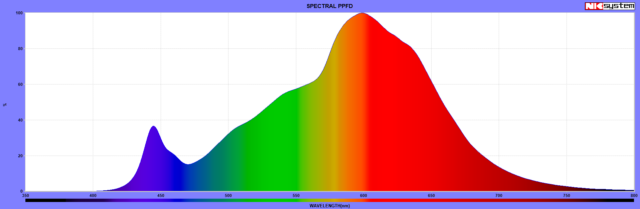

Spectral distribution
Lamp surface	Transparent plastic cover
Number of LED chips	25 pieces × 2 rows 50 pieces	35 pieces × 2 rows 70 pieces	65 pieces × 2 rows 130 pieces	144 pieces × 2 rows 88 pieces
LED illuminating angle (°)	120
Tube diameter (minor axis × major axis [mm])	30.3 × 34.3
Length (mm)	330	436	580	1,198
Length (mm)	120	160	210	392
Tube base	G13
Protection level	IP20
Input current (A) max at 100V	0.06	0.09	0.1	0.18
Power consumption (W) max at 100V	4	5	9	18
Total luminous flux (lm)	260	360	650	1,400
Color temperature (K)	3,000 ± 100
Color rendering index (Ra)	80
Environmental temperature (℃)	-20 to 40		-10 to 40
Life time (h)	Approximately 30,000
Power source	AC 100 to 240 V 50/60Hz

Note:

A power cord is needed if PlantFlec is used by itself.
Feel free to consult us regarding the installation and brackets.
Some plants are not suitable for PlantFlec.
These models are non-dimmable. Please ask us If you need dimmable models.
PlantFlec is incompatible with other manufacturer’s LEDs. Never use PlantFlec in other lighting equipment, as it may cause a fire.
