<Sun-like LED lamp>
A Straight Tube LED Lamp with Sunlight-like Spectrum for Optimal Plant Growth

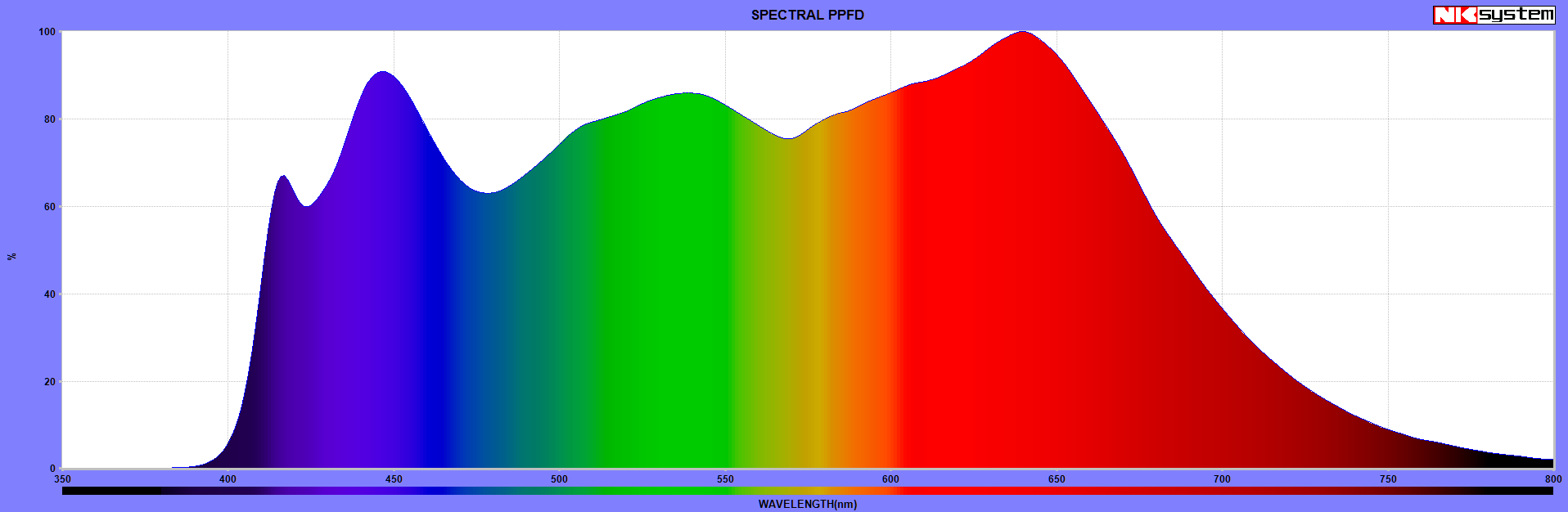

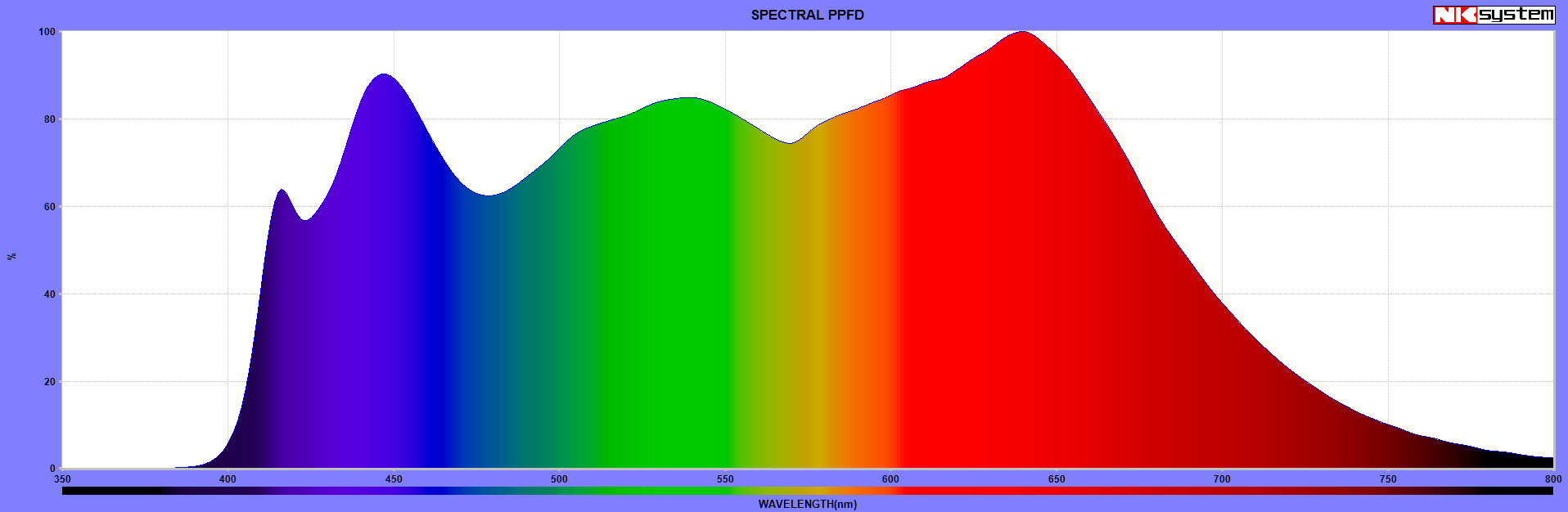

SUNRAY LIGHT features red, green, and blue wavelengths, which are considered highly effective for photosynthesis.
It is designed for easy installation in growing racks and plant growth chambers.
It provides natural coloring to optimize plant growth.
Note: This product is not compatible with LEDs made by other companies. Please do not install them.
| Model | PF10-S6WT8-S1 | PF15-S8WT8-S1 | PF20-S12WT8-S1 | PF40-S22WT8-S1 |
|---|---|---|---|---|
| Lamp type | 10W | 15W | 20W | 40W |
| Lamp surface | Transparent plastic cover | |||
| LED radiation angle (°) | 120 | |||
| Tube diameter (minor axis × major axis [mm]) | 30.3 × 34.3 | |||

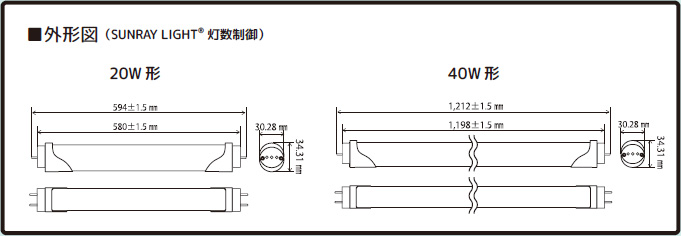

| Length (mm) | 330 | 436 | 580 | 1198 |
| Number of LED chips | 36 pieces | 48 pieces | 65 pieces | 132 pieces |
| Weight (ｇ) | 130 | 170 | 200 | 380 |
| Tube base | G13 | |||
| Input current (A) max at 100V | 0.06 | 0.08 | 0.12 | 0.22 |
| Power consumption(W) max at 100V | 6 | 8 | 12 | 22 |
| Total luminous flux (lm) | 530 | 720 | 870 | 1,500 |
| Color temperature (K) | 5,600 ± 200 | |||
| Color rendering index (Ra) | 90 | |||
| Environmental temperature (℃) | -10～40 | |||
| Lifetime (h) | Approx. 30,000 | |||
| Power source | AC 100 to 240V 50/60Hz | |||
Note:
