＜Standard model＞ Dimmable & Dual-Color LED

Plant Growth Chamber

This is an energy-saving model of a standard closed-type plant growth chamber, equipped with alternating Plantflec Yellow and SUNRAY LIGHT LEDs.

Features

  • This is an energy-saving model of a standard closed-type plant growth chamber, equipped with alternating Plantflec Yellow and SUNRAY LIGHT LEDs.
  • An operation touch panel with time display is mounted on the upper part of the main body, which allows easy operation.
  • It allows both constant operation at any temperature/light/ (humidity) and day/night switching operation.

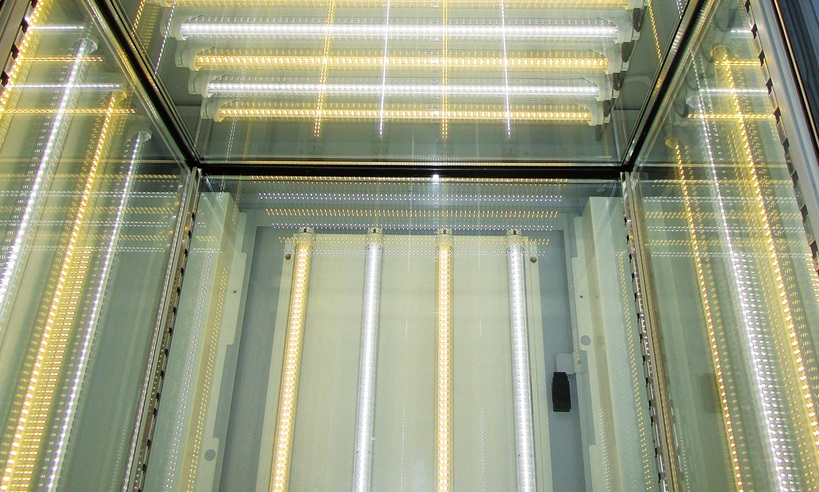

  • Five-sided illumination. The light can be continuously dimmed form 20% to 100% or 0%.
  • Three-position controller is used for temperature and humidity control (proportional control for heating), which provides low running costs.
  • The inner door has energy-saving functions, being used as one door or two up-and-down doors as per usual.
  • Two-level wind speed control is installed to protect wind-sensitive plants.
  • A hole of 40 mm diameter for measurement is included as standard.
  • Humidity control system can be selected from “only humidification” or “only dehumidification” or “both humidification and dehumidification.”





Applications

  • Plant cell/tissue culture, germination, acclimation, or growth test
  • Environmental test
  • Growth of rice, arabidopsis, etc.
  • Insect experiment
  • Cell culture
  • Environmental resistance test for plants
  • Storage test at constant temperature and at constant humidity (only Model LPH)





Options

  • Table for a water tank 　(Size:W300×D400×H900mm)
  • Evaporator for drained water

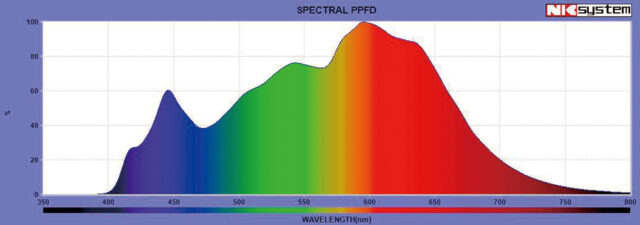

LED spectrum

Specifications



Model LPH-411PFDST-S
Outer dimensions (mm) W880 × D806 × H1,875
Inner dimensions (mm) W670 × D565 × H1,100
Control system Changeover between constant operation and day/night switching operation
 Control methods Three-position control method: Refrigerator and humidifier, ON/OFF control; heater, proportional control
Temperature  +5～50℃ ± 1℃ (+15～ when all lights on)
Humidity 50-90%RH ± 10%RH(15-45℃)
Illuminance 0 to 19,000lx
They can be continuously dimmed from 20% to 100% or 0% (all lights off)
Photon flux density 0 to  285 μmolm-2s-1

Light

source

 Light source

Straight tube sun-like LED lamp (SUNRAY LIGHT) ,Straight tube LED lamp (PLANTFLEC) Yellow for plant growth

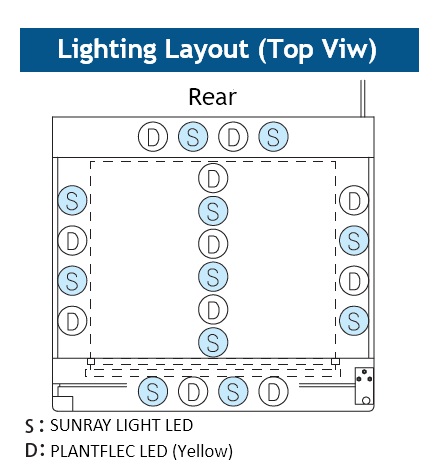

Number of lamps

Left, right, rear and door: 40W 4 lamps (2 lamps x 2 color) x 4 sides,

Ceiling: 20W 6 lamps (3 lamps x 2 color) x 1 side
Refrigerator 300W
Heater 500W
Humidifier 80W
Shelf 6 shelves (adjustable)

Operation current (maximum)

14.5A
Power requirement Single phase 100V  50/60Hz　15A E
Weight (kg) About 285

* Temperature sensor: platinum resistance temperature sensor, humidity sensor: polymer film capacitive sensor, humidifier: ultrasonic humidifier.
* Power requirement does not include the power-outlet installed inside the chamber. The internal outlet can be used up to 0.5A.
* These chambers are designed to operate in ambient temperatures 15 to 30℃ in general. The specified performance may not be achieved depending on actual usage conditions.
* Supply purified water (disilled or reverse osmosis water) only.
* The specified performance may not be achieved depending on the combination of temperature and humidity.
* Depending on the sample, drainage installation may be required.
* When lighting, temperature setting should be 15℃ or higher.
* Keep 30cm or more clearance at both sides and the back of the product to prevent exhausted heat from being trapped and hindering the cooling function.
* The specified control accuracy for temperature and humidity applies when lights off.
* For long-term operation at high temperatures, please contact us for confirmation.
* The specified performance may vary depending on the installation environment, settings, and the placement of samples and other conditions inside the chamber.
