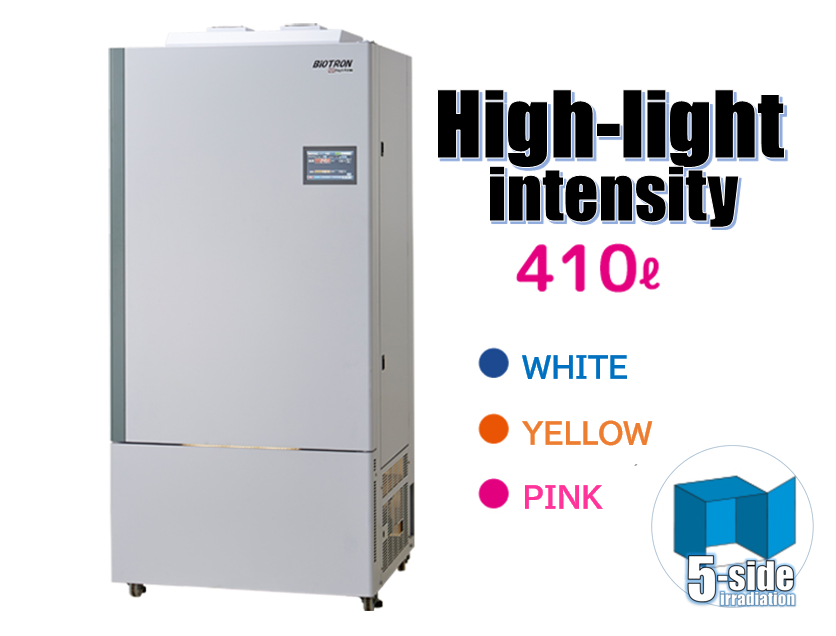

＜High-light intensity model＞ Dimmable

Plant Growth Chamber

This is equipped with high-light intensity LED lamps.
The temperature and humidity are controlled by a 3-position control system, contributing to energy savings. Optimal program control can be achieved based on the specific requirements of the cultured plants. All types are capable of continuous dimming.

Features

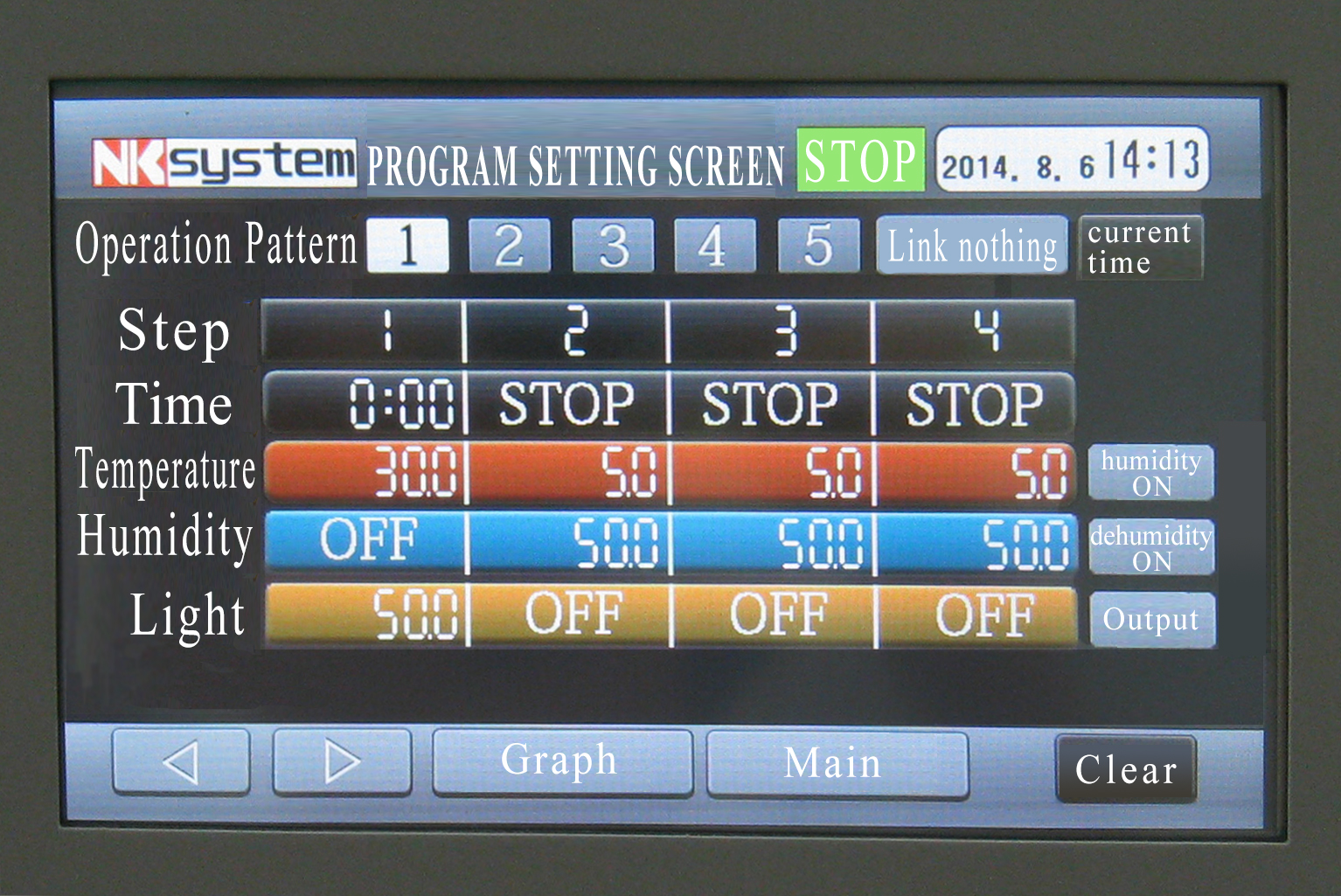

  • An operation touch panel with time display is mounted on the upper part of the main body, which allows easy operation.
  • Model L(P)H-□PFQ (S/D/P) T-S allows both constant operation at any temperature/light/ (humidity) and day/night switching operation.
  • Model L(P)H-□PFQ (S/D/P) -SP(C) allows a program control.
  • Model L(P)H-□PFQ (S/D/P) -SPC has a CO2 control function.

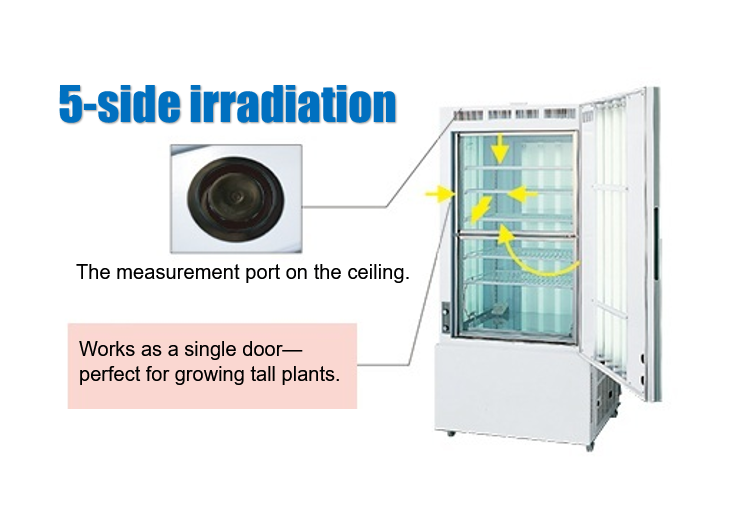

  • Five-sided illumination. The light can be continuously dimmed form 20% to 100% or 0%.
  • Model LHs don’t need a drain hose or a tank because of a forced evaporation system inside the chamber.
  • Three-position controller is used for temperature and humidity control (proportional control for heating), which provides low running costs.
  • The inner door has energy-saving functions, being used as one door or two up-and-down doors as per usual.
  • Two-level wind speed control is installed to protect wind-sensitive plants..
  • A hole of 40 mm diameter for measurement is included as standard.
  • Humidity control system can be selected from “only humidification” or “only dehumidification” or “both humidification and dehumidification.”

Options

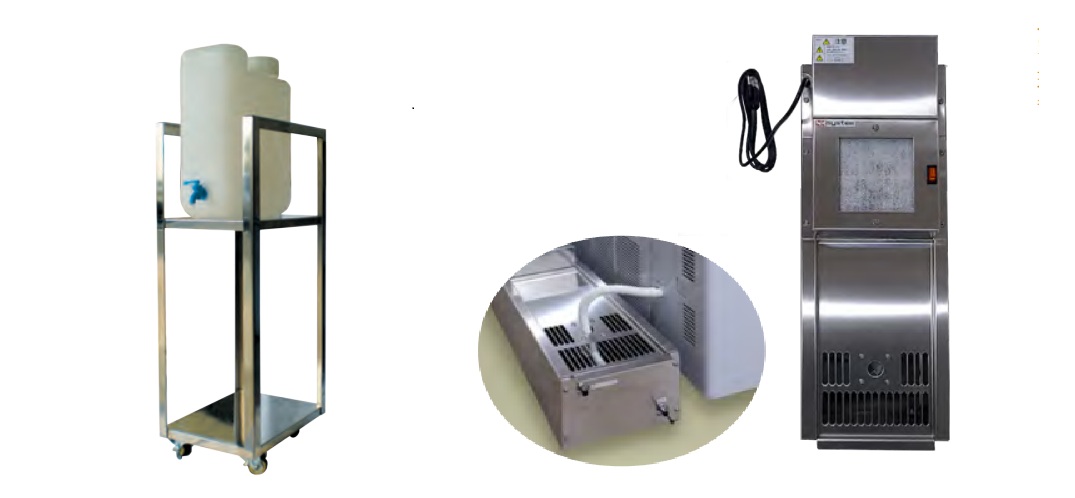

  • Table for a water tank (Model LPH)　(Size:W300×D400×H900mm)
  • Evaporator for drained water (Model LPH)
  • Individual ceiling light control

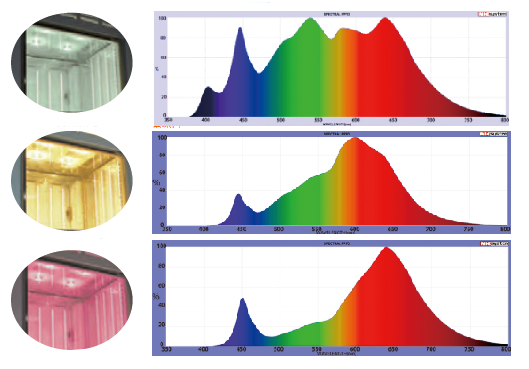

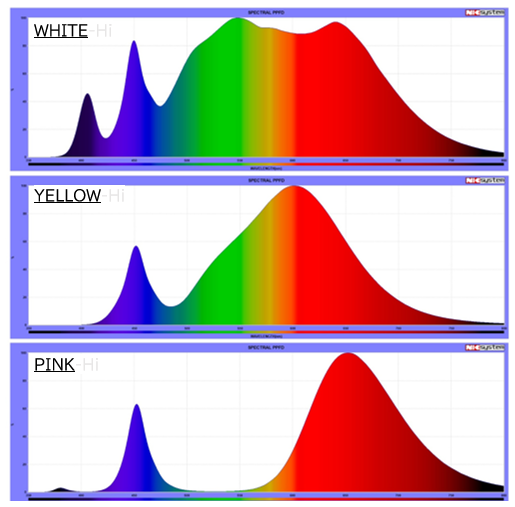

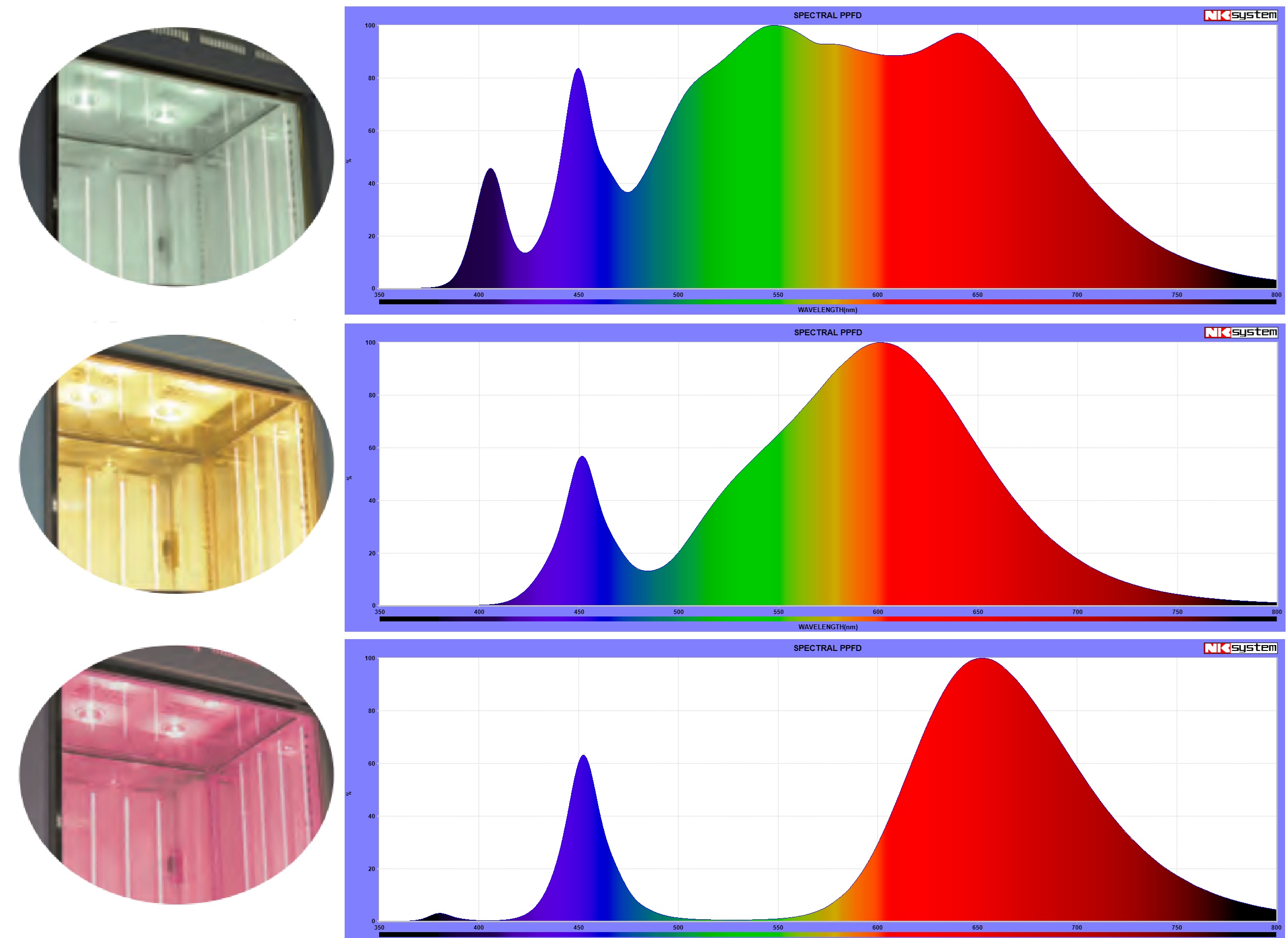

LED Spectrum



Specifications



Model   White LED LH-411PFQST-S LPH-411PFQST-S LH-411PFQST-SP LPH-411PFQST-SP LPH-411PFQST-SPC
 Yellow LED LH-411PFQDT-S LPH-411PFQDT-S LH-411PFQDT-SP LPH-411PFQDT-SP LPH-411PFQDT-SPC
Pink LED LH-411PFQPT-S LPH-411PFQPT-S LH-411PFQPT-SP LPH-411PFQPT-SP LPH-411PFQPT-SPC
Outer dimensions (mm) W880 × D806 × H1,935
Inner dimensions (mm) W670 × D565 × H1,100
Control system

Changeover between constant operation
and day/night switching operation

Real-time based control (24 hours)/Cumulated hours-based control(Up to 999 hours and 59 minutes/step)

24steps/5patterns with a pattern link function
Repeat ― 1 to 99 times or unlimited
 Control methods Three-position control method: Refrigerator and humidifier, ON/OFF control; heater, proportional control
Temperature  +5℃ to 50℃ ± 1℃ ( +15℃ ~ when all lights on)
Humidity ―

50-90%RH ± 10%RH
(15℃ to 45℃)

 ― 50-90%RH ± 10%RH
(15℃ to 45℃)
CO2 concentration ―

Ambient to 3,000 ppm
Illuminance White: 0 to 58,500 lx,          Yellow: 0 to 76,000 lx,         Pink: 0 to 18,500 lx
They can be continuously dimmed from 20% to 100% or 0% (all lights off)
Photon flux density White:0 to 900 μmolm-2s-1,      Yellow: 0 to 930 μmolm-2s-1,       Pink: 0 to 640 μmolm-2s-1

Light

source

 Illumination

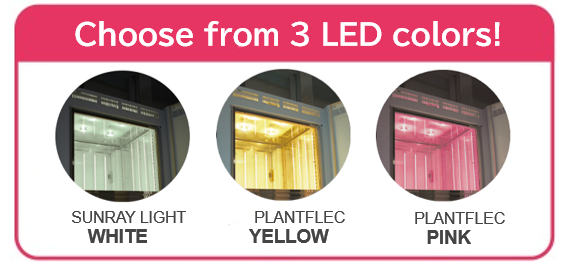

White: Straight tube sun-like LED lamp (SUNRAY LIGHT)
 Yellow and Pink: Straight tube LED lamp (PLANTFLEC) for plant growth
Number of lamps  Left, right, rear, and door: 4 lamps (40W) x 4 sides, Ceiling: 1 lamp (600W) x 1 side
Refrigerator 300W
Heater 500W
Humidifier ― 80W  ― 80W
Shelf 6 shelves (adjustable)

Operation current
(maximum)

White: 17A
Yellow and Pink: 16A

White: 20.5A
Yellow and Pink: 19.5A

White: 17A
Yellow and Pink: 16A

White: 20.5A
Yellow and Pink: 19.5A
Power requirement

Single phase 100V
50/60Hz 20A E

Single phase 100V
50/60Hz　30A E

Single phase 100V
50/60Hz 20A E

Single phase 100V
50/60Hz　30A E
Weight (kg) About 295 About 305 About 295 About About 305

* Temperature sensor: platinum resistance temperature sensor, humidity sensor: polymer film capacitive sensor, humidifier: ultrasonic humidifier, Carbon Dioxide Concentration Sensor: Non-Dispersive Infrared (NDIR) Spectroscopy Method.
* Power requirement does not include the power-outlet installed inside the chamber. The internal outlet can be used up to 1A.
* These chambers are designed to operate in ambient temperatures 15 to 30℃ in general. The specified performance may not be achieved depending on actual usage conditions.
* Supply purified water (disilled or reverse osmosis water) only.
* When lighting, temperature setting should be 15℃ or higher.
* Keep 30cm or more clearance at both sides and the back of the product to prevent exhausted heat from being trapped and hindering the cooling function.
* The specified control accuracy for temperature and humidity applies when lights off.
* For long-term operation under conditions of high temperature and high humidity, please contact us for confirmation.
* Due to differences in wavelength characteristics, the illuminance and luminous flux of each colors differ.
* Illuminance and photon flux density values measured on the lower shelf are average values.
* Due to PWM dimming control, flicker may be visible at low output settings.
