＜See-Through Model＞

Small Plant Growth Chamber

This plant growth chamber which can utilize natural light. You can choose the lighting from the following:
-White color: sun-like LED (SUNRAY LIGHT)
-Yellow/Pink color: LED for plant growth (PLANTFLEC)
It is ideal for experiments and research that utilize natural light. Long-day treatment is performed by the illumination lamps equipped in four sides. Three-position controller is used for temperature and humidity control, which provides low running costs.

Features

  • The inner door can be used as one door or two up-and-down doors as per usual, which allows a wide opening.

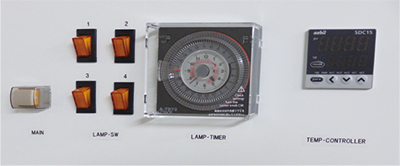

  • Three-position controller is used for temperature and humidity control, which provides energy-saving effects.
  • Air circulation system allows good temperature distribution.
  • The single door allows for a wider opening.

Applications

  • Plant cell/tissue culture, germination, acclimation, or growth test
  • Environmental resistance test for plants
  • Insect experiment
  • Environmental test

Options

  • Outlet inside the chamber
  • Measurement hole

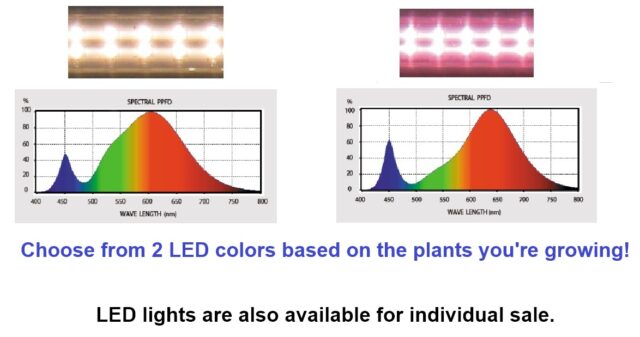

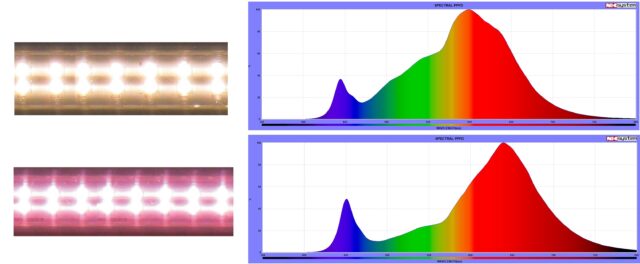

LED Spectrum

Specifications

* S:White LED (SUNRAY LIGHT), D: Yellow LED (PLANTFLEC), P: Pink LED (PLANTFLEC)　

Model White LED LH-120PFS-RD LH-120PFS-RDCT
Yellow LED LH-120PFD-RD LH-120PFD-RDCT
Pink LED LH-120PFP-RD LH-120PFP-RDCT
Outer dimensions (mm)  W635×D602×H1,519
Inner dimensions (mm)  W380×D418×H773
Control system Changeover between constant operation

Changeover between constant operation

and day/night switching operation
Temperature  +5℃ to 50℃ ± 1℃ (+15℃ ~ when all lights on)

Light

source

 Illumination

White: Straight tube sun-like LED lamp (SUNRAY LIGHT)
Yellow and Pink: Straight tube LED lamp (PLANTFLEC) for plant growth
Number of lamps Lef, right, and rear: 4 lamps (20W) x 3 sides, Ceiling: 4 lamps (10W) x 1 side
Refrigerator 150W
Heater 300W
Shelf 4 shelves  (adjustable)
Operation current(maximum) 5.5A
Power requirement Single phase 100V 50/60Hz 15A
Weight (kg) About 90

* Temperature sensor: platinum resistance temperature sensor.
* These chambers are designed to operate in ambient temperatures 15 to 30℃ in general. The specified performance may not be achieved depending on actual usage conditions.
* Depending on operating conditions, samples in the chamber may become dry.
* When lighting, temperature setting should be 15℃ or higher.
* The specified control accuracy for temperature and humidity applies when lights off.
* For long-term operation under conditions of high temperature and high humidity, please contact us for confirmation.
