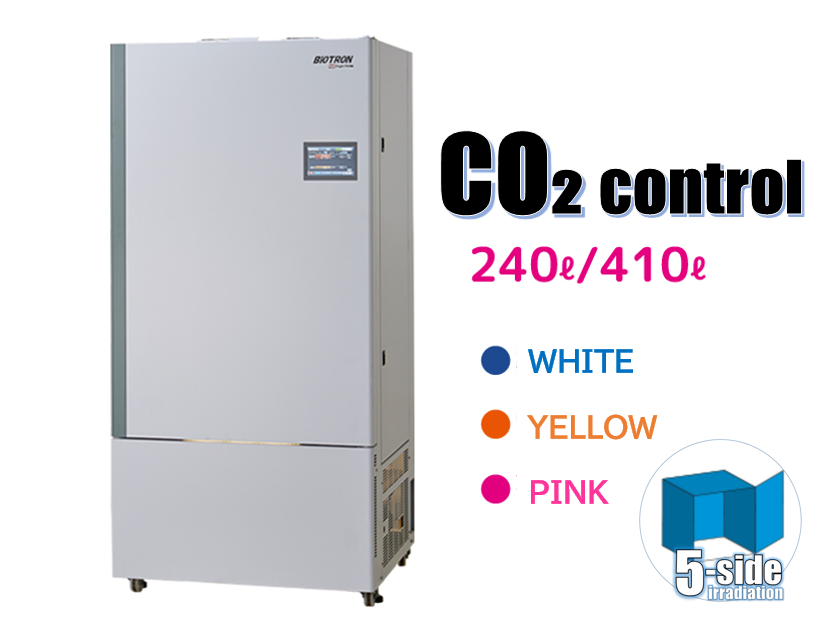

＜CO₂ control＞ Dimmable

Plant Growth Chamber

The CO₂ control function is added to the standard plant growth chambers.
Three-position controller is used for temperature and humidity control, providing energy-saving effects．This model can be used for research such as relationship between CO₂ concentration and plant growth rate.

Features

  • This model retains all functions of the model LPH-241/411PF(P/D/S)T-SP.
  • CO2 concentration can be controlled between atmospheric one and 3,000 ppm (controlled with addition of CO2).

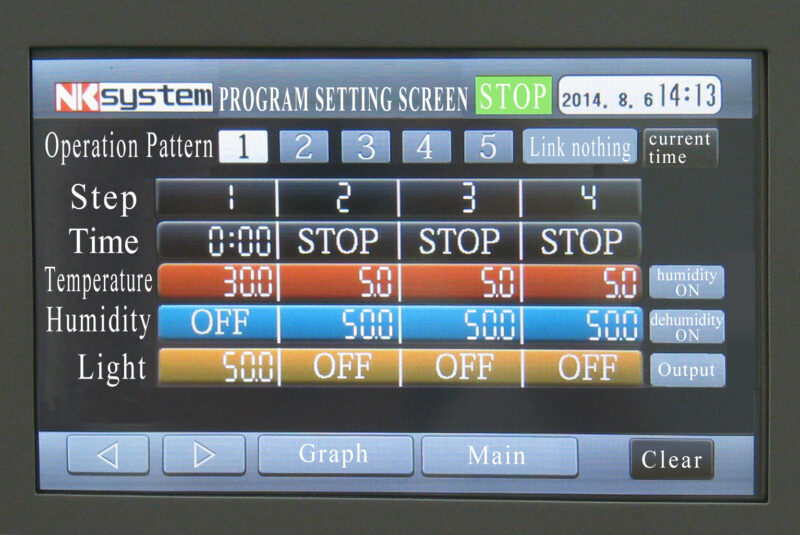

  • Temperature, humidity, and illumination settings are done by using the touch panel mounted on the upper part of the door.
  • Temperature, humidity, and illumination can be controlled by programming.

Applications

  • Plant cell/tissue culture, germination, acclimation, or growth tests
  • Growth of rice, arabidopsis, etc.
  • Insect experiments
  • Cell culture
  • Environmental tests

Options

  • Pressure Regulator with a flow meter
  • Table for a water tank  (Size:W300×D400×H900mm)
  • Evaporator for drained water
  • CO2 removal unit

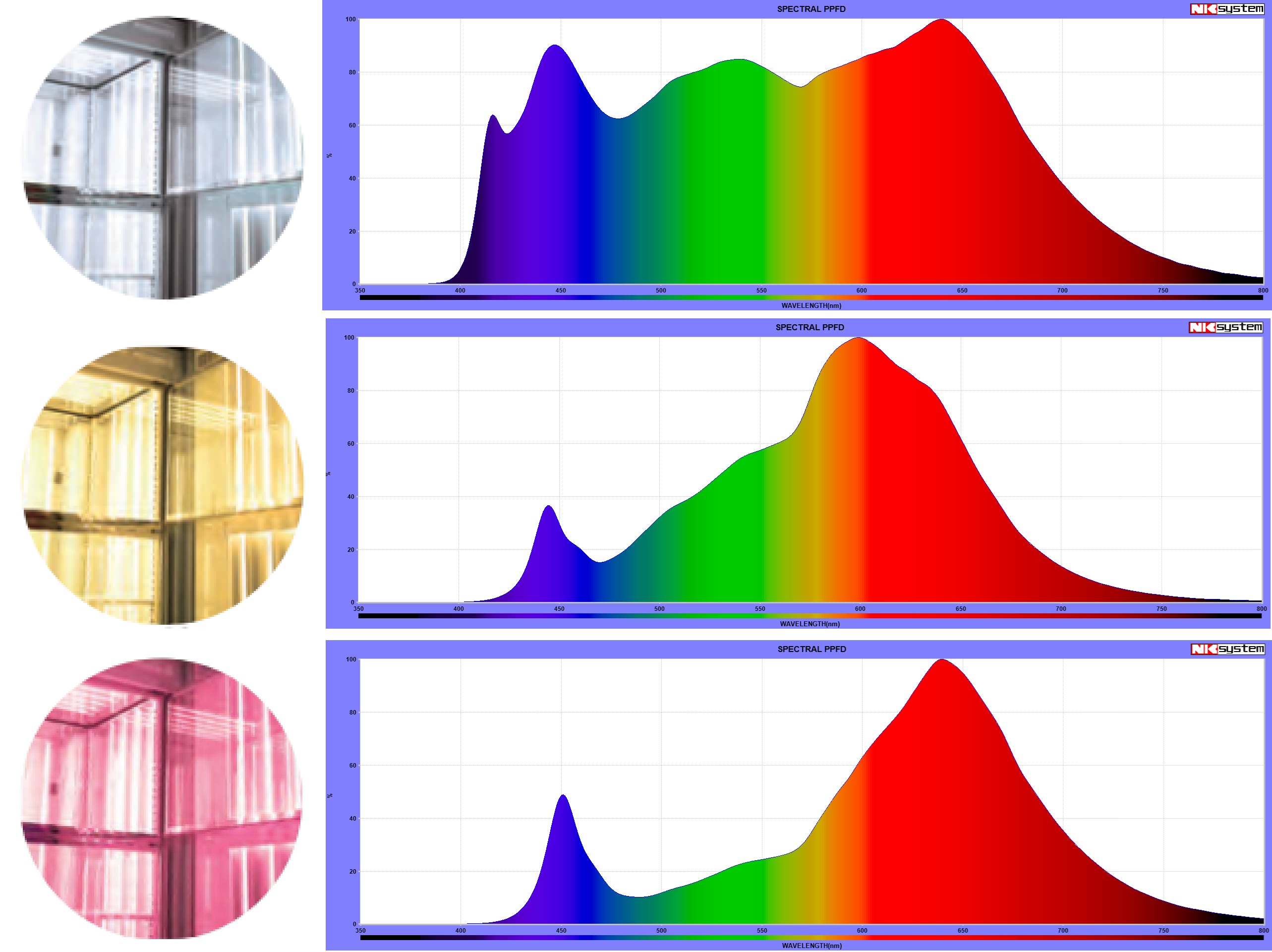

LED spectrum



Specifications

Model White LED LPH-241PFST-SPC LPH-411PFST-SPC
Yellow LED LPH-241PFDT-SPC LPH-411PFDT-SPC
Pink LED LPH-241PFPT-SPC LPH-411PFPT-SPC
Outer dimensions (mm) W760 × D726 × H1,767 W880 × D806 × H1,875
Inner dimensions (mm) W512 × D485 × H980 W670 × D565 × H1,100
Control system

Real-time based control (24 hours)/Cumulated hours-based control(Up to 999 hours and 59 minutes/step)

24steps/5patterns with a pattern link function
Repeat 1 to 99 times or unlimited
Control methods ON/OFF control for three-position control, refrigerator, and humidifier; and proportional control for heater
Temperature +5℃ to 50℃ ± 1℃ (15℃ ~ when all lights on)
Humidity

50-80%RH ± 10%RH
(15℃ to 45℃)

50-90%RH ± 10%RH
(25℃ to 45℃)*
Illuminance

White and Yellow LED: 0 to 20,000 lx,    Pink color: 0 to 12,000 lx
They can be continuously dimmed from 20% to 100% or 0% (all lights off).
Photon flux density White LED:0 to 330 μmolm-2s-1,      Yellow LED: 0 to 280 μmolm-2s-1,       Pink LED: 0 to 260 μmolm-2s-1

Light

source

 illumination

White: Straight tube sun-like LED lamp (SUNRAY LIGHT)
Yellow and Pink: Straight tube LED lamp (PLANTFLEC) for plant growth
Number of lamps

Left, right, and rear: 4 lamps (40W) x 3 sides,
Ceiling and door: 4 lamps (20W) x 2 sides

Left, right,rear and door: 4 lamps (40W) x 4 sides,
Ceiling: 6 lamps (20W) x 1 side
Refrigerator 200W 300W
Heater 500W
Humidifier 80W
CO2 concentration ambient to 3,000ppm

Shelf

5 shelves (adjustable)

6 shelves (adjustable)

Operation current
(maximum)

White: 13.5A
Yellow and Pink: 12.5A

White: 14.5A
Yellow and Pink: 13.5A
Power requirement Single phase 100V 50/60Hz　15A E
Weight (kg) About 235 About 285

* Temperature sensor: platinum resistance temperature sensor, humidity sensor: polymer film capacitive sensor.
* The internal outlet of LPH-411PFST-SPC can be used up to 0.5A, LPH-241PFST-SPC can be used up to 1A.
* These chambers are designed to operate in ambient temperatures 15 to 30℃ in general. The specified performance may not be achieved depending on actual usage conditions.
* The specified control accuracy for temperature and humidity applies when lights off.
* For long-term operation under conditions of high temperature and high humidity, please contact us for confirmation.
