With Dimmable LED

Plant Growth Chamber ＜Standard model＞

This is an energy-saving model of a standard closed-type plant growth chamber, equipped with dimmable LEDs as standard.

Features

  • An operation touch panel with time display is mounted on the upper part of the main body, which allows easy operation.
  • Model L(P)H-□PF(S/D/P)T-S allows both constant operation at any temperature/light/ (humidity) and day/night switching operation.
  • Model L(P)H-□PF(S/D/P)T-SP allows a program control.
  • Five-sided illumination. The light can be continuously dimmed form 20% to 100% or 0%.
  • Model LHs don’t need a drain hose or a tank because of a forced evaporation system inside the chamber.
  • Three-position controller is used for temperature and humidity control (proportional control for heating), which provides low running costs.
  • The inner door has energy-saving functions, being used as one door or two up-and-down doors as per usual.
  • Two-level wind speed control is installed to protect wind-sensitive plants..
  • A hole of 40 mm diameter for measurement is included as standard.
  • Humidity control system can be selected from “only humidification” or “only dehumidification” or “both humidification and dehumidification.”

Applications

  • Plant cell/tissue culture, germination, acclimation, or growth test
  • Environmental test
  • Growth of rice, arabidopsis, etc.
  • Insect experiment
  • Cell culture
  • Environmental resistance test for plants
  • Storage test at constant temperature and at constant humidity (only Model LPH)

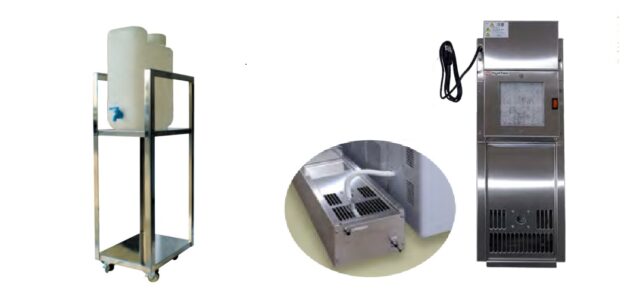

Options

  • Table for a water tank (Model LPH)　(Size:W300×D400×H900mm)
  • Evaporator for drained water (Model LPH)

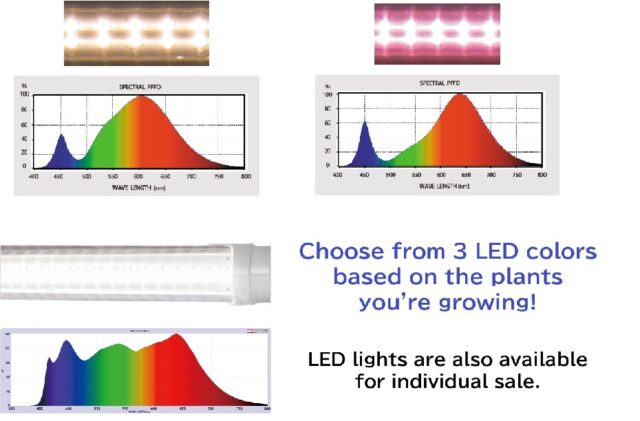

LED spectrum

Specifications

Model designation

240 ℓ series

Model White LED LH-241PFST-S LPH-241PFST-S LH-241PFST-SP LPH-241PFST-SP
Yellow LED LH-241PFDT-S LPH-241PFDT-S LH-241PFDT-SP  LPH-241PFDT-SP
Pink LED LH-241PFPT-S LPH-241PFPT-S LH-241PFPT-SP LPH-241PFPT-SP
Outer dimensions (mm) W760 × D726 × H1,767
Inner dimensions (mm) W512 × D485 × H980
Control system

Changeover between constant operation
and day/night switching operation

Real-time based control (24 hours)/Cumulated hours-based control(Up to 999 hours and 59 minutes/step)

24steps/5patterns with a pattern link function
Repeat ― 1 to 99 times or unlimited
 Control methods Three-position control method: Refrigerator and humidifier, ON/OFF control; heater, proportional control
Temperature  +5℃ to 50℃ ± 1℃ (+15℃ ~ when all lights on)
Humidity ―

50-80%RH ± 10%RH
(15-45℃)

 ―

50-80%RH ± 10%RH
(15-45℃)
Illuminance1 White and Yellow: 0 to 20,000 lx,        Pink: 0 to 12,000 lx
They can be continuously dimmed from 20% to 100% or 0% (all lights off)
Photon flux density1

White:0 to  330 μmolm-2s-1,      Yellow: 0 to 280 μmolm-2s-1,       Pink: 0 to 260 μmolm-2s-1

Light

source

 Illumination

White: Straight tube sun-like LED lamp (SUNRAY LIGHT)
Yellow and Pink: Straight tube LED lamp (PLANTFLEC) for plant growth
Number of lamps Left, right, and rear: 4 lamps (40W) x 3 sides, Ceiling and door: 4 lamps (20W) x 2 sides
Refrigerator 300W
Heater  400W 500W 400W 500W
Humidifier ― 80W  ― 80W
Shelf 5 shelves (adjustable)

Operation current

(maximum)

White: 9A
Yellow and Pink: 8A

White: 13A
Yellow and Pink: 12.5A

White: 9A
Yellow and Pink: 8A

White: 13A
Yellow and Pink: 12.5A
Power requirement Single phase 100V 50/60Hz　15A E
Weight (kg) About 225 About 235 About 225 About 235



410 ℓ series

Model White LED LH-411PFST-S LPH-411PFST-S LH-411PFST-SP LPH-411PFST-SP
Yellow LED LH-411PFDT-S LPH-411PFDT-S LH-411PFDT-SP  LPH-411PFDT-SP
Pink LED LH-411PFPT-S LPH-411PFPT-S LH-411PFPT-SP LPH-411PFPT-SP
Outer dimensions (mm) W880 × D806 × H1,875
Inner dimensions (mm) W670 × D565 × H1,100
Control system

Changeover between constant operation
and day/night switching operation

Real-time based control (24 hours)/Cumulated hours-based control(Up to 999 hours and 59 minutes/step)

24steps/5patterns with a pattern link function
Repeat ― 1 ~ 99 times or unlimited
 Control methods Three-position control method: Refrigerator and humidifier, ON/OFF control; heater, proportional control
Temperature  +5～50℃ ± 1℃ (+15～ when all lights on)
Humidity ―

50-90%RH ± 10%RH
(15-45℃)*

 ―

50-90%RH ± 10%RH
(15-45℃)*
Illuminance1 White and Yellow: 0 to 20,000 lx,     Pink: 0 to 12,000 lx
They can be continuously dimmed from 20% to 100% or 0% (all lights off)
Photon flux density1 White:0 to  330 μmolm-2s-1,      Yellow: 0 to 280 μmolm-2s-1,       Pink: 0 to 260 μmolm-2s-1

Light

source

 Light source

White: Straight tube sun-like LED lamp (SUNRAY LIGHT)
Yellow and Pink: Straight tube LED lamp (PLANTFLEC) for plant growth
Number of lamps  Left, right, rear and door: 4 lamps (40W) x 4 sides, Ceiling: 6 lamps (20W) x 1 side
Refrigerator 300W
Heater 500W
Humidifier ― 80W  ― 80W
Shelf 6 shelves (adjustable)

Operation current
(maximum)

White: 11A
Yellow and Pink: 10A

White: 14.5A
Yellow and Pink: 13.5A

White: 11A
Yellow and Pink: 10A

White: 14.5A
Yellow and Pink: 13.5A
Power requirement Single phase 100V  50/60Hz　15A E
Weight (kg) About 275 About 285 About 275 About 285

1 Illuminance and photon flux are measured on the center shelf inside the cabinet.

* For  LPH-411PFST-S(P), humidity range (temperature range) is as follows:
  50-80%RH±10%RH (15-45℃)
  50-90%RH±10%RH (25-45℃)

* Temperature sensor: platinum resistance temperature sensor, humidity sensor: capacitance measurement sensor, humidifier: ultrasonic humidifier.
* Power requirement does not include the power-outlet installed in the body.
* These chambers are designed to operate in ambient temperatures up to 30℃. The specified performance may not be achieved depending on actual usage conditions.
* If lighting, temperature setting should be 15℃ or higher.
* The specified performance may not be achieved depending on the combination of temperature and humidity.
* Depending on the sample, drainage installation may be required.
* Temperature can be controlled between +5℃ and +50℃.
* When controlling humidity, the temperature should be set between 15℃ and 45℃ in Model 241/411.
