Small Plant Growth Chamber

This is a small plant growth chamber (120 liters). You can choose the lighting from the following:
-White color: sun-like LED (SUNRAY LIGHT)
-Yellow/Pink color: LED for plant growth (PLANTFLEC)
Environmental control can be adjusted to meet research needs, such as short-day and long-day treatments.There are two types of control system: Changeover between constant operation and day/night switching operation or Program control. Three-position controller is used for temperature control, which provides energy-saving benefits.

Features

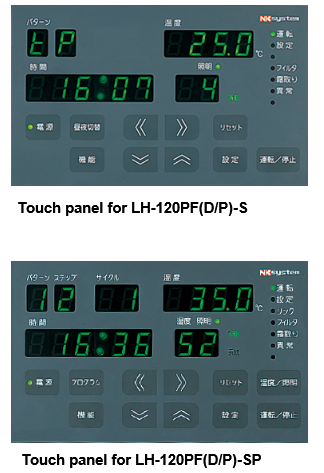

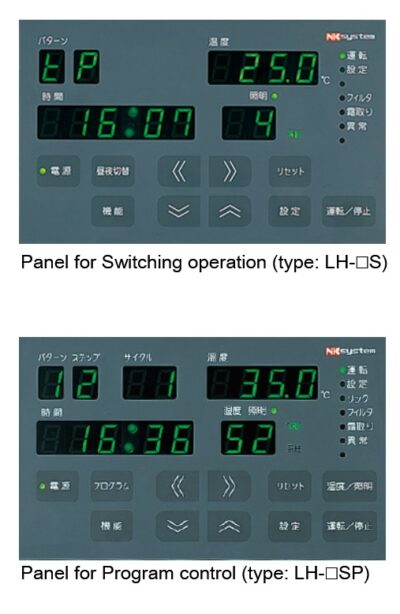

  • The operational touch panel is conveniently located on the upper part of the main unit and includes a real-time display, facilitating easy operation.
  • Type -S: constant operation at any temperature/light and day/night switching operation.
  • Type -SP:program control, utilizing the actual time method (9 steps/3 patterns or 27 steps/pattern)
  • 5-side irradiation.
  • Type LH does not require a drainage system due to its built-in forced evaporation system.
  • Temperature control is achieved through a 3-position (proportional heating) system, resulting in lower operational costs.

Applications

  • Plant cell and tissue culture, germination, acclimation, and growth tests
  • Environmental Tolerance Tests for Plants
  • Thermostatic Storage Experiments
  • Environmental Tests

Options

  • Measuring holes

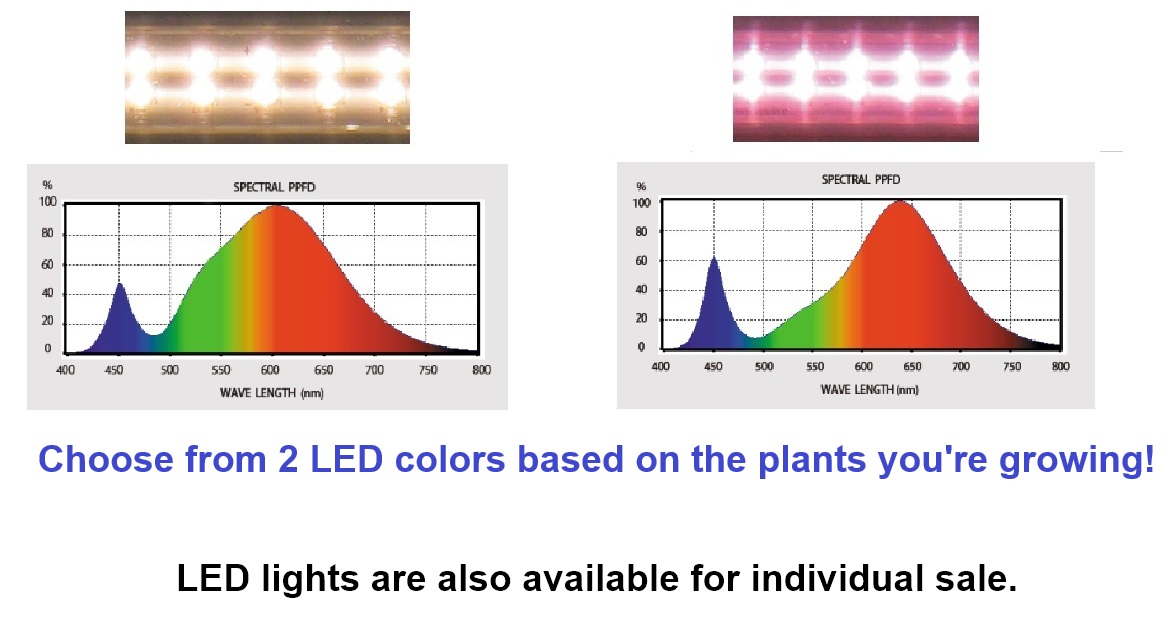

LED spectrum

Specifications

* S:White LED (SUNRAY LIGHT), D: Yellow LED (PLANTFLEC), P: Pink LED (PLANTFLEC)　

Model White LED LH-120PFS-S LH-120PFS-SP
Yellow LED LH-120PFD-S LH-120PFD-SP
Pink LED LH-120PFP-S LH-120PFP-SP
Outer dimensions (㎜) W586 × D674 × H1,571
Inner dimensions (㎜) W380 × D418 × H773
Control system

Changeover between constant operation

and day/night switching operation

Step program

(9 steps/3 patterns,  27 steps/1 pattern)
Repeat – 1 to 99 times or infinitive
 Control methods Three-position control method: Refrigerator and humidifier, ON/OFF control; heater, proportional control
Temperature +5 to 50℃ ± 1℃
Illuminance

White: 0 to 18,000 lx, 　　Yellow: 0 to18,500 lx,        Pink: 0 to 11,000 lx
 Controlled by the number of lamps.
Photon flux density

White: 0  to  300 μmolm-2s-1                 Yellow: 0  to  250 μmolm-2s-1              Pink: 0  to  220 μmolm-2s-1　　　
Light
source		 Illumination White: Straight tube sun-like LED lamp (SUNRAY LIGHT)
Yellow and Pink: Straight tube LED lamp (PLANTFLEC) for plant growth
Number of lamps Left, right, and rear: 4 lamps (20W) × 4 sides, Ceiling: 4 lamps (10W) × 1 side
Refrigerator 150 Ｗ
Heater 300 W
Shelf 4 shelves (adjustable)
Operation current (maximum) 6.5A
Power requirement Sigle phase 100V 50/60Hz 15A
Weight (kg)  145

* Temperature sensor: platinum resistance temperature sensor.
* Power requirement does not include the power-outlet installed inside the chamber. The internal outlet can be used up to 1A.
* These chambers are designed to operate in ambient temperatures 15 to 30℃ in general. The specified performance may not be achieved depending on actual usage conditions.
* Depending on the sample, drainage installation may be required.
* Keep 30cm or more clearance at both sides and the back of the product to prevent exhausted heat from being trapped and hindering the cooling function.
* The specified control accuracy for temperature and humidity applies when lights off.
* The specified performance may vary depending on the installation environment, settings, and the placement of samples and other conditions inside the chamber.
