Benchtop Plant Growth Chamber

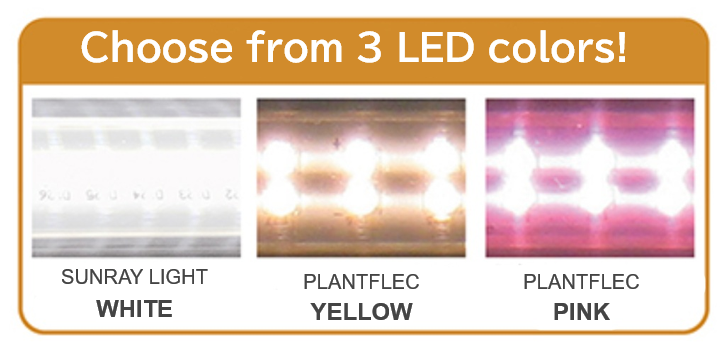

Choose from Three Types of LEDs: SUNRAY LIGHT LED (White color), PLANTFLEC LED Pink color or Yellow color!

Features

  • Simple light shield type.
  • LH-62PF (S/D/P) is equipped with LEDs in the ceiling.
  • LH-62PF (S/D/P) is equipped with LEDs in the ceiling and in the left, right, and rear sides.
  • The temperature is controlled within the range of +10°C to +40°C ( +15℃ ~ when all lights on). A three-position control system is utilized for energy savings.
  • The changeover operation is available between constant operation and day/night switching operation.

Applications

  • Tissue culture, germination, and growth tests for plants
  • Growing of plug vegetables, mini-gardens, and ornamental plants

Options

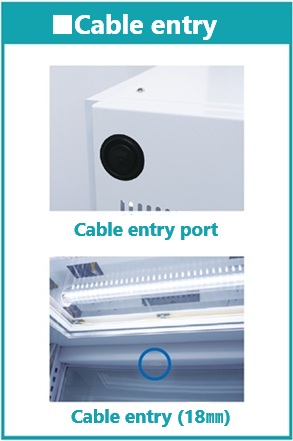

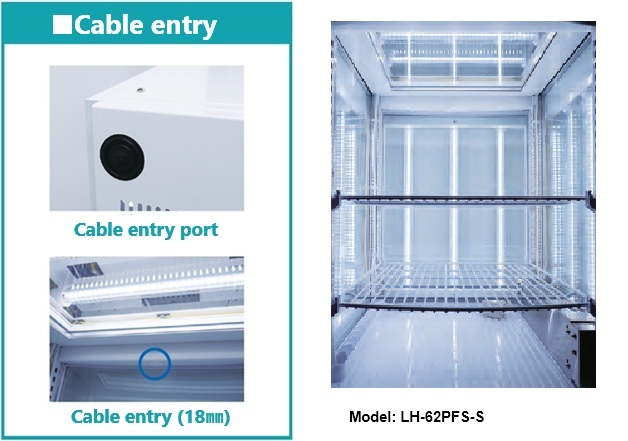

  • Outlet inside the chamber

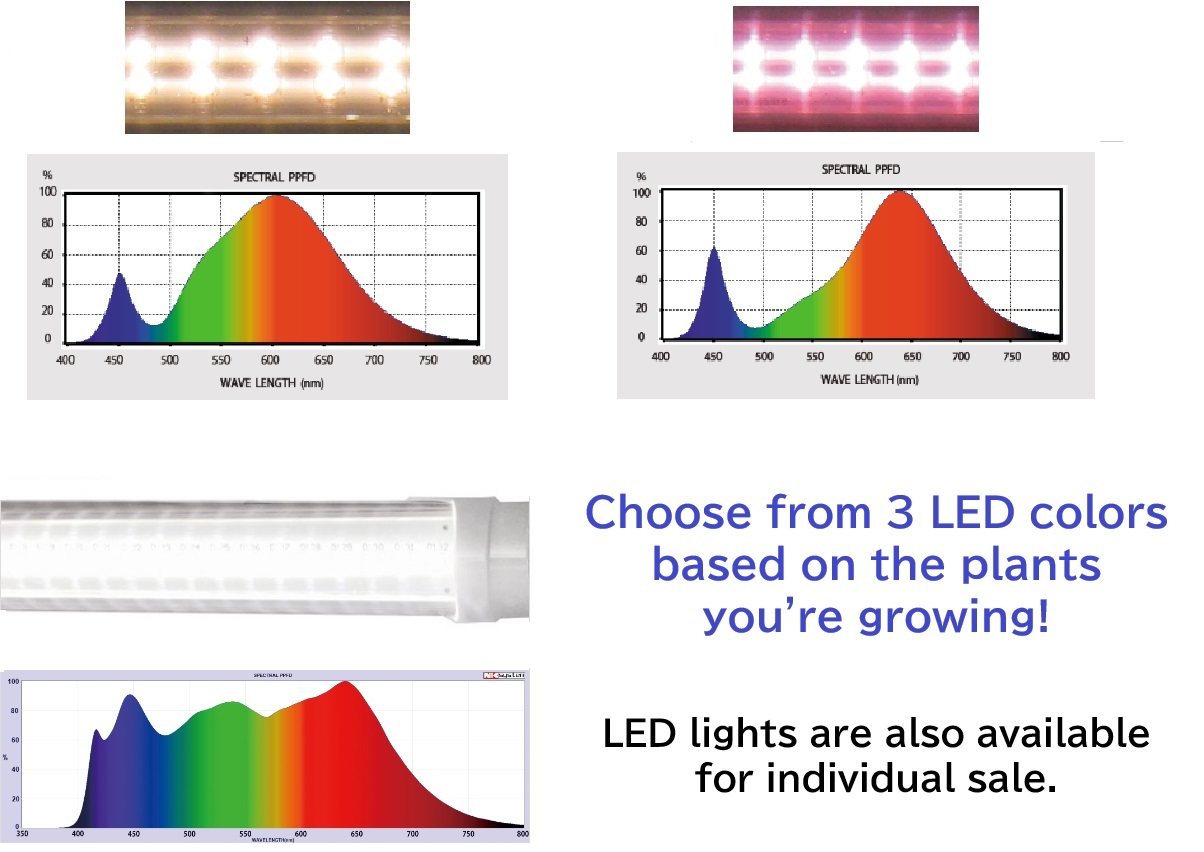

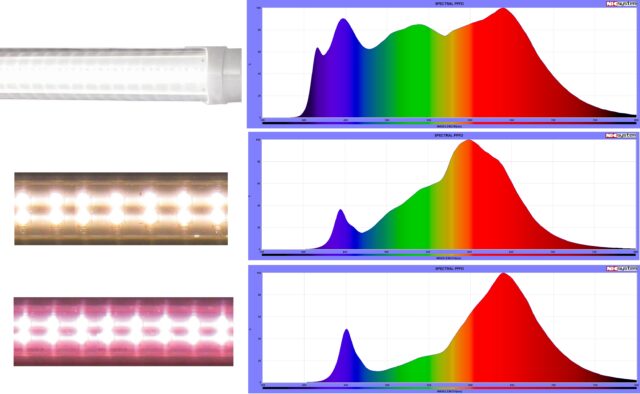

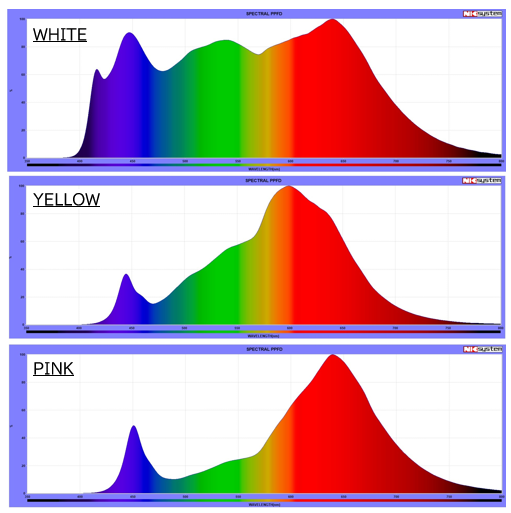

LED spectrum



Specifications

Model White LED Yellow LED Pink LED
LH-62PFS LH-62PFD LH-62PFP
Outer dimensions (㎜) W469×D460×H1,009
Inner dimensions (㎜) W395×D360×H460

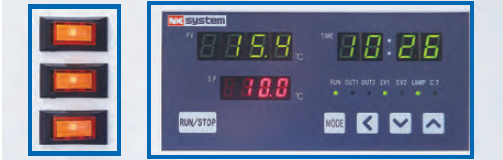

Control system

Changeover between constant operation and day/night switching operation
＊Lighting and temperature: Once per day each
 Control methods Three-position control method: Refrigerator, ON/OFF control; heater, proportional control
Temperature +10℃ to 40℃ ± 2℃　( +15℃ ~ when all lights on)
Illuminance 4,000 lx 3,100 lx 1,800 lx
Photon flux density 70 μmolm-2s-1 45 μmolm-2s-1 40 μmolm-2s-1
Light
source		 Illumination

Straight tube sun-like LED lamp
(SUNRAY LIGHT)

Straight tube LED lamp (PLANTFLEC) for plant growth
Number of lamps 　Ceiling: 3 lamps (10W)  x 1 side
Refrigerator 150W
Heater 150W

Operation current (maximum)

 3.5A
Power requirement Sigle phase 100V 50/60Hz 15A
Weight 60 ㎏



Model White LED Yellow LED Pink LED
LH-62PFS-S LH-62PFD-S LH-62PFP-S
Outer dimensions (㎜) W550×D503×H1,009
Inner dimensions (㎜) W395×D360×H460
Control system

Changeover between constant operation and day/night switching operation
＊Lighting and temperature: Once per day each
 Control methods Three-position control method: Refrigerator, ON/OFF control; heater, proportional control
Temperature +10℃ to 40℃ ± 2℃　( +15℃ ~ when all lights on)
Illuminance 15,000 lx 11,800 lx 7,300 lx
Photon flux density 250 μmolm-2s-1 160 μmolm-2s-1 150 μmolm-2s-1
Light
source		 Illumination

Straight tube sun-like LED lamp
(SUNRAY LIGHT)

Straight tube LED lamp (PLANTFLEC) for plant growth
Number of lamps Left, right, and rear: 3 lamps (15W) × 3sides, Ceiling: 3 lamps (10W) x 1side
Cooler 150W
Heater 150W

Operation current
(maximum)

 4A
Power requirement Sigle phase 100V 50/60Hz 15A
Weight 68 ㎏

* Illuminance and photon flux density values measured near the lower shelf are average values.
* Safety Devices:Earth Leakage Circuit Breaker, Refrigeration Unit Protection Device (Overload Relay, Auto Reset Type), Fuse
* The refrigeration unit uses a non-fluorocarbon (natural refrigerant) specification.
* Temperature sensor: platinum resistance temperature sensor.
* Power requirement does not include the power-outlet installed inside the chamber. The internal outlet can be used up to 1A.
* These chambers are designed to operate in ambient temperatures 15 to 30℃ in general. The specified performance may not be achieved depending on actual usage conditions.
* Depending on the sample, drainage installation may be required.
* When lighting, temperature setting should be 20℃ or higher.
* Keep 30cm or more clearance at both sides and the back of the product to prevent exhausted heat from being trapped and hindering the cooling function.
* The specified control accuracy for temperature and humidity applies when lights off.
* For long-term operation at high temperatures, please contact us for confirmation.
