HC series

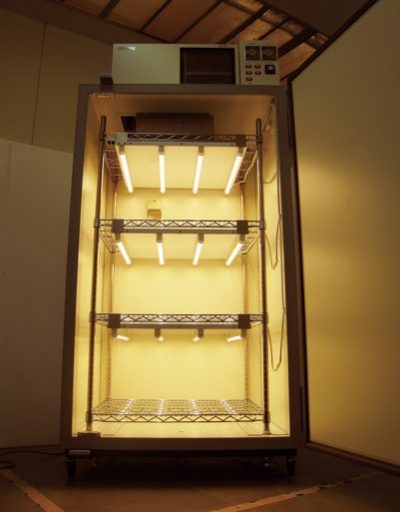

Large Environmental Control Chamber

It provides a flexible space that can accommodate different purposes by offering a range of varying capacities!
Choose from Three Types of LEDs: SUNRAY LIGHT LED (White color), PLANTFLEC LED Pink color or Yellow color!

Features

  • It has a spacious capacity, allowing for easy caring-in and set up even in an 800 mm wide entranceway by simply removing the door. Casters are provided as standard equipment, making it easy to move the unit not only during delivery but also afterward.
  • Various specifications can be selected from 880ℓ and 1240ℓ common chambers.
  • The chamber’s large capacity allows for direct installation of shelves and other equipment. Additionally, various lighting options are also available.
  • Standard features include a measurement hole, an antibacterial deodorizing filter, and two outlets inside the chamber.
  • The antibacterial deodorizing filter inside the chamber is effective in antibacterial and deodorizing the air inside the chamber.
  • Both the interior and exterior of the main unit are constructed from colored antimicrobial steel plate.
  • All models can be powered using a standard 15A household power outlet.

Applications

  • Experiment
  • Testing
  • Cultivation
  • Storage
  • Quality Control
  • Production Culture
  • Research & Development

Options

  • Window (880 type/1240 type)
  • Additional measurement hole
  • CO2 addition control system (HCLP (H) only)
  • CO2 removal control system (HCLP (H) only)
  • Change to fluorescent lighting type
  • Change to other lighting types
  • Change in number of LED/fluorescent tubes, number of steps, etc.

LED spectrum (SUNRAY LIGHT: White color)

LED spectrum (PLANTFLEC: Yellow/Pink color)

Specifications

Model HC-880 HC-1240
Internal Capacity (ℓ) 880 1240
External Dimensions (mm) W967 × D874 × H1,980 W1,350 × D874 × H1,980
Internal Dimensions (mm) W850 × D703 × H1,466 W1,200 × D703 × H1,466
Temperature 4℃ to 15℃
Humidity Ambient humidity
Operation current (maximum)
Not including the inside outlet		 6A
Power requirement Single phase 100V 50/60Hz　15A



Model HCLP-880 HCLP-880PF(S/D/P)*
-3-4L		 HCLP-1240 HCLP-1240PF(S/D/P)*
-3-6L
Internal Capacity (ℓ) 880 1240
External Dimensions (mm) W967 × D874 × H1,980 W1,350 × D874 × H1,980
Internal Dimensions (mm) W850 × D703 × H1,466 W1,200 × D703 × H1,466
Temperature 4℃ to 40℃
Humidity Ambient humidity
Shelf with illumination ー LED lamp for plant growth (20W pink/yellow/white): 4 × 3 shelves ー LED lamp for plant growth (20W pink/yellow/white): 6 × 3 shelves
Operation current (maximum)
Not including the inside outlet		 6A 8A 6A 9A
Power requirement Single phase 100V 50/60Hz　15A



Model HCLPH-880 HCLPH-880PF(S/D/P)*
-3-4L		 HCLPH-1240 HCLPH-1240PF(S/D/P)*
-3-6L
Internal Capacity (ℓ) 880 1240
External Dimensions (mm) W1,144 × D874 × H1,980 W1,527 × D874 × H1,980
Internal Dimensions (mm) W850 × D703 × H1,466 W1,200 × D703 × H1,466
Temperature 4℃ to 40℃
Humidity 55％RH to 85%RH (18℃ to 40℃)
Shelf with illumination ー LED lamp for plant growth (20W pink/yellow/white): 4 × 3 shelves ー LED lamp for plant growth (20W pink/yellow/white): 6 × 3 shelves
Operation current (maximum)
Not including the inside outlet		 7A 8A 7A 10A
Power requirement Single phase 100V 50/60Hz　15A

* Illumination   S= White color / Sun-like LED lamp “SUNRAY LIGHT”

                        D= Yellow color / “PLANTFLEC”  for plant growth

                        P= Pink color / “PLANTFLEC” for plant growth

*This product is designed to be used in a typical indoor environment with a room temperature of 30°C or lower.

*Depending on usage conditions, the specified performance may not be achieved.

*When lighting, the temperature setting should be 15°C or higher.

 Common specifications

  • Interior and exterior surface material: Antibacterial colored steel plate
  • Heat insulator: Rigid polyurethane foam
  • Measuring hole: 1 place with 40φ plug (right side for 880 size, ceiling for 1240 size)
  • Antibacterial deodorizing filter: Photocatalytic titanium oxide filter (built-in type)
