Illumination Unit
This lighting unit consists of five wavelengths (violet, blue, green, red, and far-red) that are considered necessary for plant growth. It can be used for various research purposes since each of the five wavelengths can be controlled independently to provide optimal light conditions for plant growth. We hope you will make use of this unit.

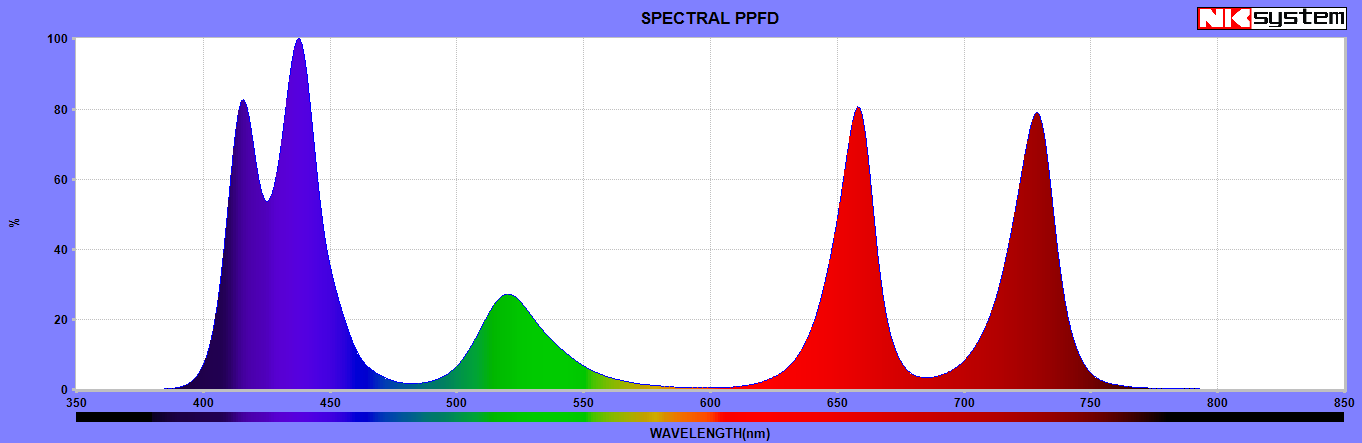

Multispex is an LED lighting unit with five wavelengths: Purple (λp = 415 ± 5 nm), blue (λp = 440 ± 5 nm), green (λp = 520 ± 5 nm), red (λp = 660 ± 5 nm), and far red (λp = 730 ± 5 nm).
The five wavelengths (purple, blue, green, red, and far red) can be individually dimmed from 20% to 100%.
It is equipped with a timer and can be switched ON and OFF at intervals of at least 15 minutes.
Raising of seedling, experimental cultivation, etc.
Illumination Unit
| Model | PF5-75T |
|---|---|
| Outer Dimensions | 350W × 350D × 44H mm |
| Material |
Aluminum for the main body, polycarbonate for the Illumination surface, and Stainless steel for the hanging brackets |
| Number of LEDs | 144 for purple, 140 for blue, 140 for green, 144 for red, and 144 for far red |
| Wavelength | Purple (λp = 415 ± 5 nm), blue (λp = 440 ± 5 nm), green (λp = 520 ± 5 nm), red (λp = 660 ± 5 nm), and far red (λp = 730 ± 5 nm) |
Note: Connect the illumination unit to the power unit in order to utilize it.
Power Unit
| Model | PF5-1BB |
|---|---|
| Outer Dimension | 190W × 307.5D × 156.5H mm |
| Material | Steal plate with resin coating for the main body |
| Dimmer Control | PWM digital dimmer (20% to 100%) for each color (5 systems) |
| Illumination Timer | ON an OFF at ≥ 15-minute intervals |
| Power Source | Single phase 100 V, 50/60 Hz, 2 A |
