<Bio-multi Model>

Multi-chamber Animal Housing System

Each of the chambers can be individually controlled for temperature and illumination.

Features

  • It is compact, small-footprint, and energy-saving, and can be installed anywhere.
  • Temperature can be controlled between +5 and +45°C, with changeover between constant operation and day/night switching operation. Each chamber can be individually controlled for temperature.
  • Innovative air jacket system provides animal-friendly and stable, constant-temperature environment.
  • Animals are housed in each chamber with less strass, and there is no cross-contamination among chambers.
  • Each chamber is clean. HEPA filter is attached for inlet air and deodorant filter for exhaust air.
  • Light intensity and lighting time can be individually controlled for each chamber.
  • An inner door is installed to observe animals in each chamber.
  • LP-30LED-8CTAR has 8 chambers with interior dimensions of W315 × 283 × H240 mm (small size).

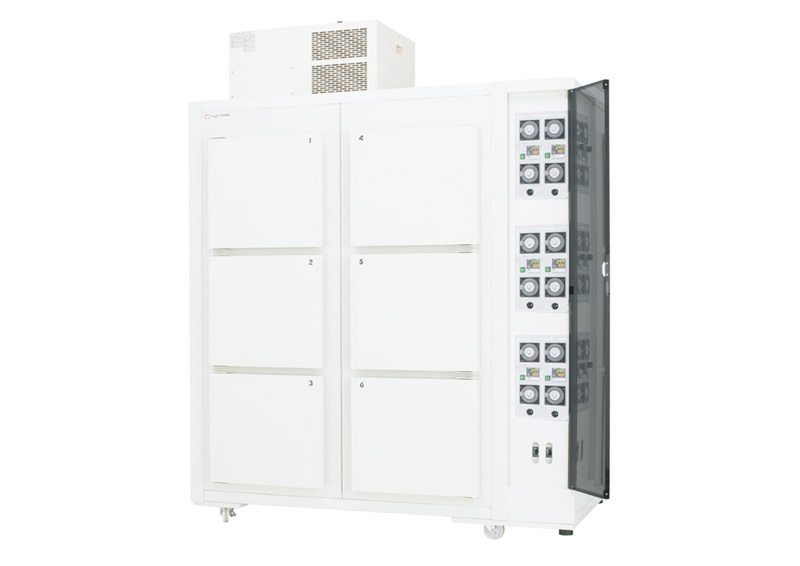

  • LP-80LED-6CTAR has 6 chambers with interior dimensions of W390 × D500 × H260 mm (large size).

Specifications

Model LP-30LED-8CTAR LP-80LED-6CTAR
Outer dimensions (WxDxH) [mm] 1,255×577×1,900 1,555×825×1,985
Inner dimensions (WxDxH) [mm] 315×283×240×8 chambers 390×500×260×6 chambers
Temperature +5 to 45℃ (+15 to 45℃ when light is on)
Ventilation (air intake) 20ℓ/min (8 chambers in total) with HEPA filter 60ℓ/min (6 chambers in total) with HEPA filter
Ventilation (air exhaust) 20ℓ/min (8 chambers in total) with deodorant filter 60ℓ/min (6 chambers in total) with deodorant filter
Temperature control Changeover between constant operation and day/night switching operation.
Illumination  LED lamp x 8 chambers
Dimmable function (individually controlled), timer (individually controlled)		 LED lamp x 6 chambers
Dimmable function (individually controlled), timer (individually controlled)
 Power requirement Single phase 100V 50/60Hz 19A  Single phase 100V 50/60Hz 18A

* These products should be used at an ambient temperature lower than 30°C.
* Temperature in a chamber may increase beyond the set value depending on radiation heat from lamps or heat generated by animals.
* The lowest temperature may have to be set to 15°C or higher depending on lighting or temperature setting.
