<individual illumination at each shelf, WLED>

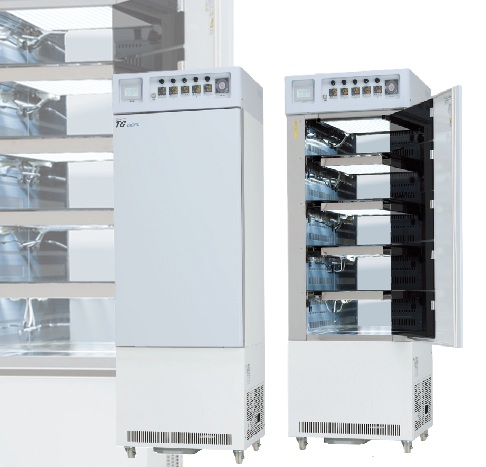

Temperature gradient incubator

Compact design, one incubator works for 3 to 5 incubators!
WLED are used to save the space, energy, and cost, as well as to speed up the research & development.

Features

  • Compact design to save space.
  • Changeover system between constant operation and day/night switching operation.
  • Temperature can be separately controlled at each shelf, ranging from +5℃ to 50℃ (During lighting: from +10℃ to 40℃).
  • Each shelf is installed with WLED.
  • Illumination of each shelf can be on/off controlled by using a touch panel. Illuminance can be manually controlled at each shelf.
  • Even illumination with close illumination.
  • <Option> power-outlet installed in the incubator.

Applications

  • Validation of optimal culture temperature for mammalian cells or microorganisms.
  • Germination and growth testing of seeds, bulbs, etc.; plant tissue culture, breeding experiment/research.
  • Developmental research or breeding of insects.
  • Chemical reaction experiments; quality verification of pharmaceuticals, foods, or cosmetics; and enzyme research.

Specifications

Model TG-180WLED-3LE TG-180WLED-5LE TG-300WED-3LE TG-300WLED-5LE
Outer dimensions (WxDxH) [mm] 560×557×1,771 560×557×1,771 720×638×1,885 720×638×1,885
Inner dimensions (WxDxH) [mm] 390×485×285
（280 in the top shelf）
×3 shelves		 390×485×155
（150 in the top shelf）
×5 shelves		 496×557×
(top shelf：305
middle shelf：320
lower shelf：345)
×3 shelves		 496×557×175
（170 in the top shelf）
×5 shelves
 Control system Changeover system between constant operation and day/night switching operation
Temperature range +5～50℃（+5～25℃、+10～50℃） 　During lighting： +10～40℃
Light source  WLED×3 shelves
with regulator		 WLED×5 shelves
with regulator		 WLED×3 shelves
with regulator		 WLED×5 shelves
with regulator
 Power consumption Single phase 100V　11A Single phase 100V　17A Single phase 100V　16A Single phase 100V　17A
Weight  About 146kg About 152kg About 187kg About 195kg

# These incubators are designed to operate in ambient temperatures up to 30oC. The specified performance may not be achieved depending on actual usage conditions.
# Temperature can be controlled between +5 and +50℃. When lighting, temperature should be set from 10℃ to 40℃.
# If the lowest temperature is not less than 5℃ and less than 10℃, the temperature difference between shelves should be 5℃. If the lowest temperature is not less than 10℃, the temperature difference between shelves should be 5- 10℃.
# The temperature difference between adjacent shelves should be not less than 5℃ and not more than 10℃. Temperature should be set to be lower in the shelf below and to be higher in the shelf above.
