Low temperature incubator

These low temperature incubators are capable of 4 step-program control with a high accuracy microprocessor (cooler: on-off control, heater: proportional control). Stainless steel shelves are coated with anti-bacterial resin to prevent bacterial contamination inside the chamber. A wide variety of chambers are available in size ranging 50L, 130L, 207L, 259L, and 408L.

Features

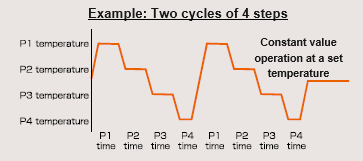

  • Four step-program control operation
  • Automatic alarms controlled by a microprocessor, a buzzer alarm as well as an alarm display on the operational panel (buzzer alarm is optional in model LP-50P).

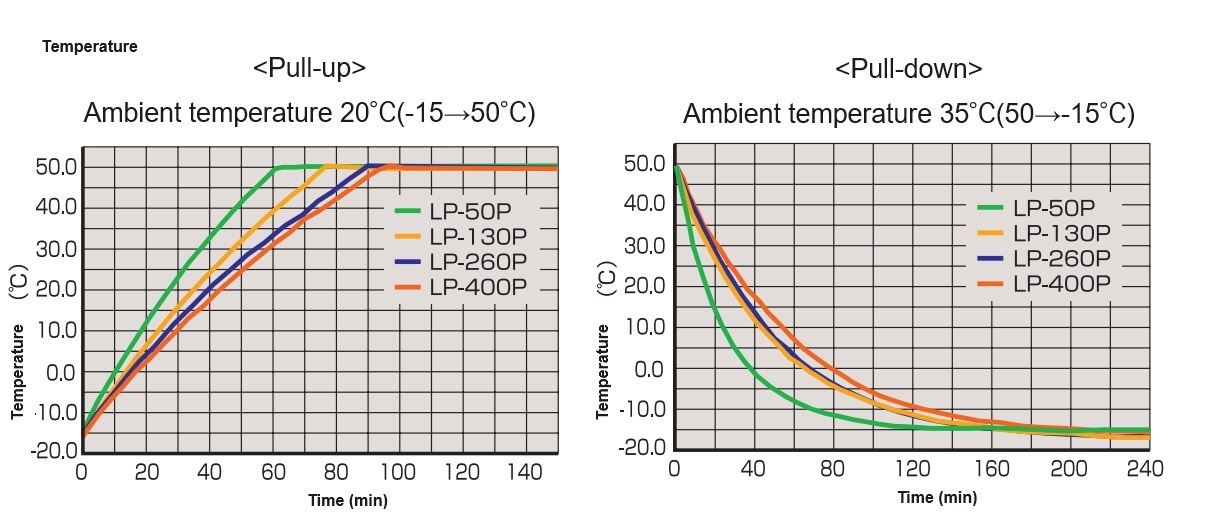

  • Prompt cooling to -15°C.

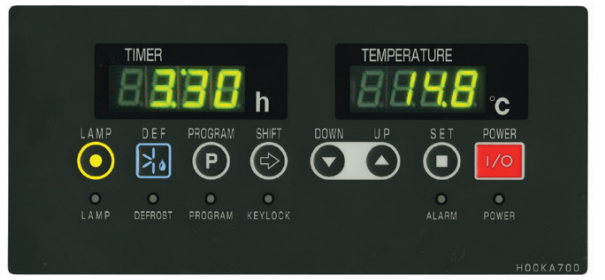

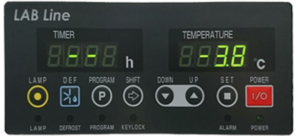

  • Easy-to-use operational panel with digital display
  • Cooler: on-off control, heater: proportional control
  • Shelves and measurement opening are coated with anti-bacterial resin to prevent bacterial contamination.
  • Option: illuminating lamp.

■Temperature distribution in the chamber

Temperature setting 5.0°C 10°C 25°C
Highest temperature 6.2°C 11.0°C 25.3°C
Lowest temperature 2.0°C 6.4°C 22.3°C
Average temperature 4.8°C 9.5°C 24.7°C
Deviation from the set value
 -0.2°C -0.5°C -0.3°C



Applications

  • Plant tissue culture, germination tests
  • Breeding of Insects or small animals
  • Culture of microorganisms, such as bacteria, viruses, and fungi
  • BOD-testing for water quality and storage of test samples
  • Biochemical experiments at low temperature, such as electrophoresis
  • Quality testing of pharmaceuticals, cosmetics or foods, etc.

Specifications

Model LP-50P LP-130P LP-200P
Outer dimensions (WxDxH) [mm] 483 × 554 × 690 700 × 602 × 1107 700 × 832 × 1107
Inner dimensions (WxDxH) [mm] 400 × 335 × 370 620 × 340 × 584 620 × 545 × 584
Control system Controlled by microprocessors with digital display, forced air circulation system
Temperature range -15°C to +50℃（environmental temperature of 30℃ without loading）
Illumination ― Fluorescent lamp　15W
Maximum power consumption 310 W 460 W 780 W
Weight  40 kg 80 kg 95 kg
Power requirement Single phase 100V 50/60Hz 15A



Model LP-260P LP-400P
Outer dimensions (WxDxH) [mm] 700 × 602 × 1,677 700 × 832 × 1,677
Inner dimensions (WxDxH) [mm] 620 × 340 × 1,154 620 × 545 × 1,154
Control system Controlled by microprocessors with digital display, forced air circulation system
Temperature range -15°C to +50℃（environmental temperature of 30℃ without loading）
Illumination Fluorescent lamp　15W
Maximum power consumption 800 W 830 W
Weight 110 kg 125 kg
Power requirement Single phase 100V 50/60Hz 15A
